PList Transform

The first feature you will see is a brand new PList Transform Task. Andrew sent down this pull request and it is super slick. Basically just set any property name and value you want to set in your iOS plist file and you are good to go!

Unix Timestamp

When versioning apps I always had the assumption that developers wanted to manually configure version numbers. However, sometimes you want an auto incrementing number such as a timestamp. When versioning iOS and Android apps you now have the ability to select a custom version number or auto numbering with the Unix time in seconds. This matches App Center functionality, which is super cool :)

Misc Updates of Joy

Beyond that we fixed a few other items such as adding the iOS Bundle Identifier to the package name task, fixed issues when comments were in the Android Manifest, handled escaped paths, and updated to the latest packages.

Grab the Extension

You can grab the latest update of the Mobile App Tasks from the Visual Studio Marketplace right now!

Watch Me & Donovan

Last year my good friend Donovan Brown asked me to come on Visual Studio Toolbox to show off the awesome extension and talk Mobile DevOps. Check it out as I walk through the extensions:

How It Was Developed

If you want to see more on how it was developed be sure to check me out on Twitch where I live code. I recently did a full live stream where I added the unix timestamp feature to iOS and Android build tasks. You can watch the full video on YouTube right now!

Productive day... Thanks @VSTS for fully automating all my NuGet packages. pic.twitter.com/pDzYUXnG5I

— James Montemagno 🙈 (@JamesMontemagno) May 10, 2018

If you look at this screenshot from VSTS it is everything that I wanted for so long in my development cycle. I push code, things are built, and automatically packages are pushed. In this post I am going to show you how I set this up for my projects and how you can too in just a few minutes.

.NET Standard and Multi-Target Projects

Before we start to setup our CI/CD for libraries I highly recommend you move your projects to SDK style projects. You can read my full guide on how to convert a PCL to .NET Standard or how to convert a Xamarin.iOS or Xamarin.Android project to SDK Style.

Everything that I develop now is based on a single .NET Standard 2.0 library or a Multi-Targeted project for plugins. I have previously written on how to convert your PCLs to .NET Standard and also have templates for Visual Studio 2017 to create Multi-Target projects for plugins.

The reason to use these types of projects is that they include full NuGet packaging including all metadata and dependencies. This also means you can fully delete the .nuspec file that always gets out of sync. It is worth your time to update any and all projects to these types of projects to simplify your life.

If you need to learn more about multi-targeting be sure to check out Oren's amazing MSBuildSdkExtras package which is the core of my templates and all of my projects.

If you are building only an iOS or Android library do not fear as you can still just convert your existing library over to an SDK Style. Take a look at my MonoDroid.Toolkit csproj on GitHub.

Build Definition in VSTS

My builds inside of VSTS are actually really simplistic and only contain 6 steps to fully build my libraries. You can use the Hosted Visual Studio 2017 machines, however I have a small Intel NUC that runs a local VSTS agent so all my NuGets are cached which reduces my build times to seconds instead of minutes.

Empty Definition

Select New and pick your source code that you would like to build. I then like to select Empty process because we can easily fill it in.

NuGet Steps

Under Phase 1 we are going to add two NUGet steps.

First is the NuGet Tool Installer task and change the Version to 4.5.1

Second will be the regular NuGet task which we will use the restore command on our solution that we are going to build. I like to pick the specific .sln or folder where it lives (no need to build other stuff).

Build Steps

I build my libraries twice! That is right twice! Once for a "beta" NuGet and once again for "public" NuGet. They are super quick and all it is really doing is changing the version flags. The reason I do this is for my release definition that will allow me to have a single release that goes from beta to public easily. We will be building the .csproj specifically using the MSBuild task:

We will add it twice so we can build the beta and public releases. Name the first Build Beta and the second Build Public. For each of them set the following:

• Project: Select the .csproj specifically
• Configuration: $(BuildConfiguration)

For MSBuild Arguments user the following for Beta:

/t:restore;build;pack /p:PackageVersion=$(Build.BuildNumber)-beta /p:PackageOutputPath=$(build.artifactstagingdirectory)/beta /p:AssemblyFileVersion=$(Build.BuildNumber)

For Public use:

/t:restore;build;pack /p:PackageVersion=$(Build.BuildNumber) /p:PackageOutputPath=$(build.artifactstagingdirectory)/public  /p:AssemblyFileVersion=$(Build.BuildNumber)

This will ensure that the build numbers are configured correctly and copy the artifacts to different folders.

Optionally, you may have some additional unit tests or device runners that may need to be run here.

Copy and Publish

The next thing to add is the Copy Files task to stage the NuGet packages for release.

Set these properties:

• Source Folder: $(build.sourcesdirectory)
• Contents: **\bin\$(BuildConfiguration)\**\*.nupkg
• Target Folder: $(build.artifactstagingdirectory)

Finally, add the Publish Build Artifacts task and set the following:

• Path to publish: $(build.artifactstagingdirectory)
• Artifact name: drop
• Artifact public location: Visual Studio Team Services/TFS

This will pull only .nupkg files that we will distribute into a folder that release can pick up.

All in all the definition should look like:

Configure Version Number

Under the Options tab in the build definition I like to format the Build number format such as: 4.5.0$(rev:.r)

This means that the next version would be: 4.5.0.1 and then 4.5.0.2.

Now if you change this to: 5.0.0$(rev:.r) it will reset the revision so it will be 5.0.0.1.

Other things!

You will probably want to setup *Triggers so CI and PR validation are configured. This means that every time master is pushed to a package is generated.

Release Definition in VSTS

Now we have our full build complete it is time to setup our release. Our goal for me was to automatically have every build of master go to MyGet and then manually approve the next release to go to NuGet (beta) and finally another approval to go to NuGet with the public non-beta package.

Head over to the Releases section and create a new release definition with an Empty process. Think of Environments as the stages of release. We can create three of them to define each release of the artifacts. Inside of each environment are a sequence of tasks, just like our build definition, that will be run. For my libraries it is really simple as each has just one task. However, before the NuGet beta and production environments I turn on pre-deployment approval steps.

Push to MyGet

In our first environment we will want to push to MyGet. Add the NuGet task with the following settings:

• Command: push
• Path to NuGet package: $(System.DefaultWorkingDirectory)/**/drop/beta/*.nupkg
• Target Feed: External NuGet server

For this step you will want to configure the feed information from MyGet:

Push NuGet Beta

For this step you can select Clone or if you already create the new environment simply add the NuGet task again. The settings will be the same as above:

• Command: push
• Path to NuGet package: $(System.DefaultWorkingDirectory)/**/drop/beta/*.nupkg
• Target Feed: External NuGet server

However, we will now want to select or configure NuGet as our destination:

Head back to Pipeline and for this environment we don't want it to automatically trigger, we want to approve this release. You will see a lightning bolt and a person shape on the left side of the environment to configure pre-deployment conditions. I turn on pre-deployment approvals and select myself and turn off the policies since I am a solo developer:

There is all sorts of rad stuff you can do here on pre and post-deployment so you should totally look into that for larger projects.

Push NuGet Production

Add or clone another environment for after the Beta environment. This is going to be almost the same as the previous step but we are going to change our Path to NuGet package:

• Command: push
• Path to NuGet package: $(System.DefaultWorkingDirectory)/**/drop/public/*.nupkg
• Target Feed: External NuGet server

Notice I am using public here :)

Add Artifact

Finally, click the big Add artifact button on the left side and select the build definition that you created earlier. Also tap on that little lightning bolt and turn on the Continuous deployment trigger so this flow automatically happens!

CI/CD Pro!

You did it! You are totally a Continuous integration and delivery pro!! Enjoy a seamless deployment of every push to master to MyGet and then approval steps to push to NuGet for any and all of your .NET Libraries. <3 Feel free to ask questions below.

If you want to understand my passion for VSTS then make sure to listen to Merge Conflict Episode 71.

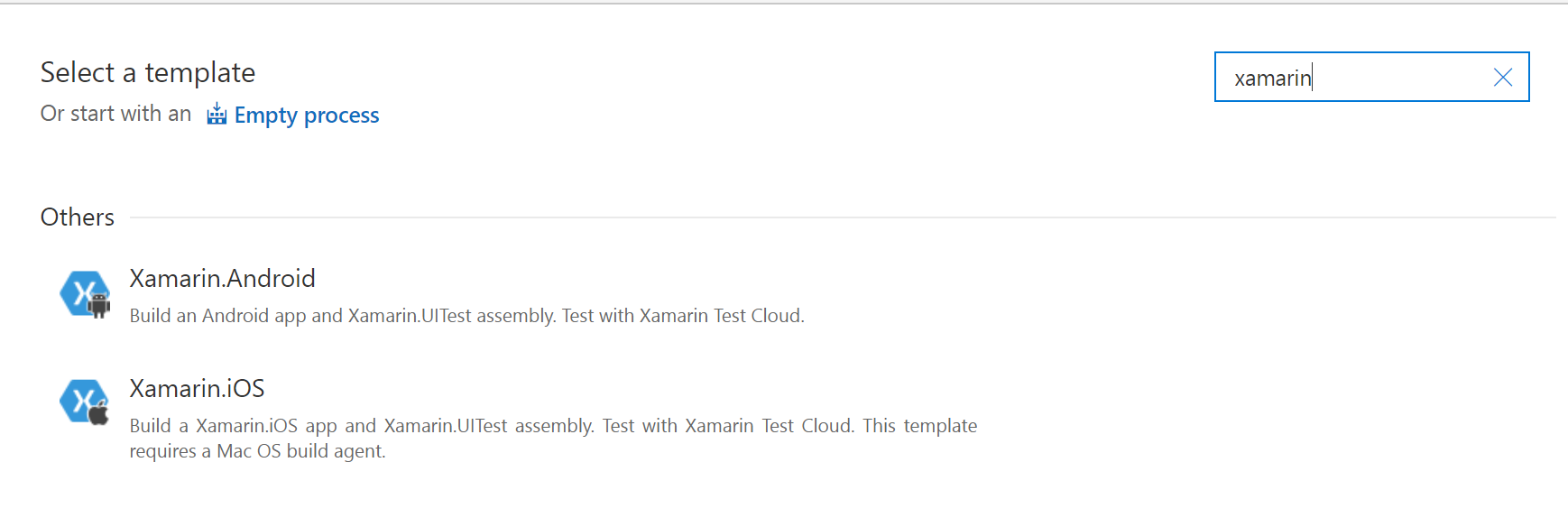

Xamarin.Android Template

When you head into VSTS and create a new build definition you will find the Xamarin.iOS and Xamarin.Android templates. Go ahead and select that Xamarin.Android template!

For now go ahead and:

1. Delete the Xamarin Test Cloud Step
2. Disable the MSBuild step for Test. If you have tests go ahead and leave it on.

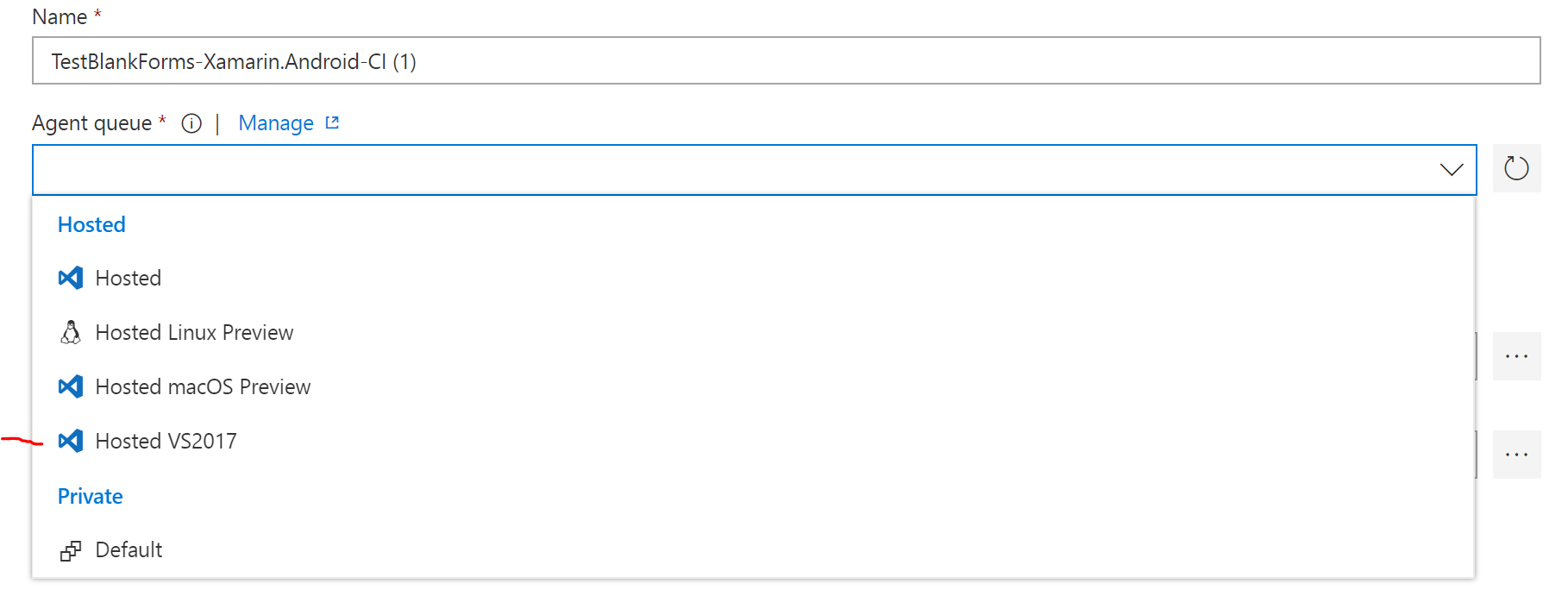

Select Build Host

Under Process we can fill in some additional information for the build such as what Solution to do a NuGet restore on and what build host to use. For now I will select the Hosted VS2017 agent.

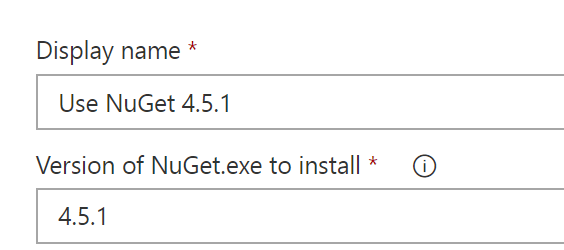

Use Nuget 4.5.1

Since the templates in VS 2017 for Xamarin.Forms apps include a UWP (Fall Creators Update app) we will need to update NuGet to use the latest version, which happens to be 4.5.1. This seems necessary due to changes with .NET Standard.

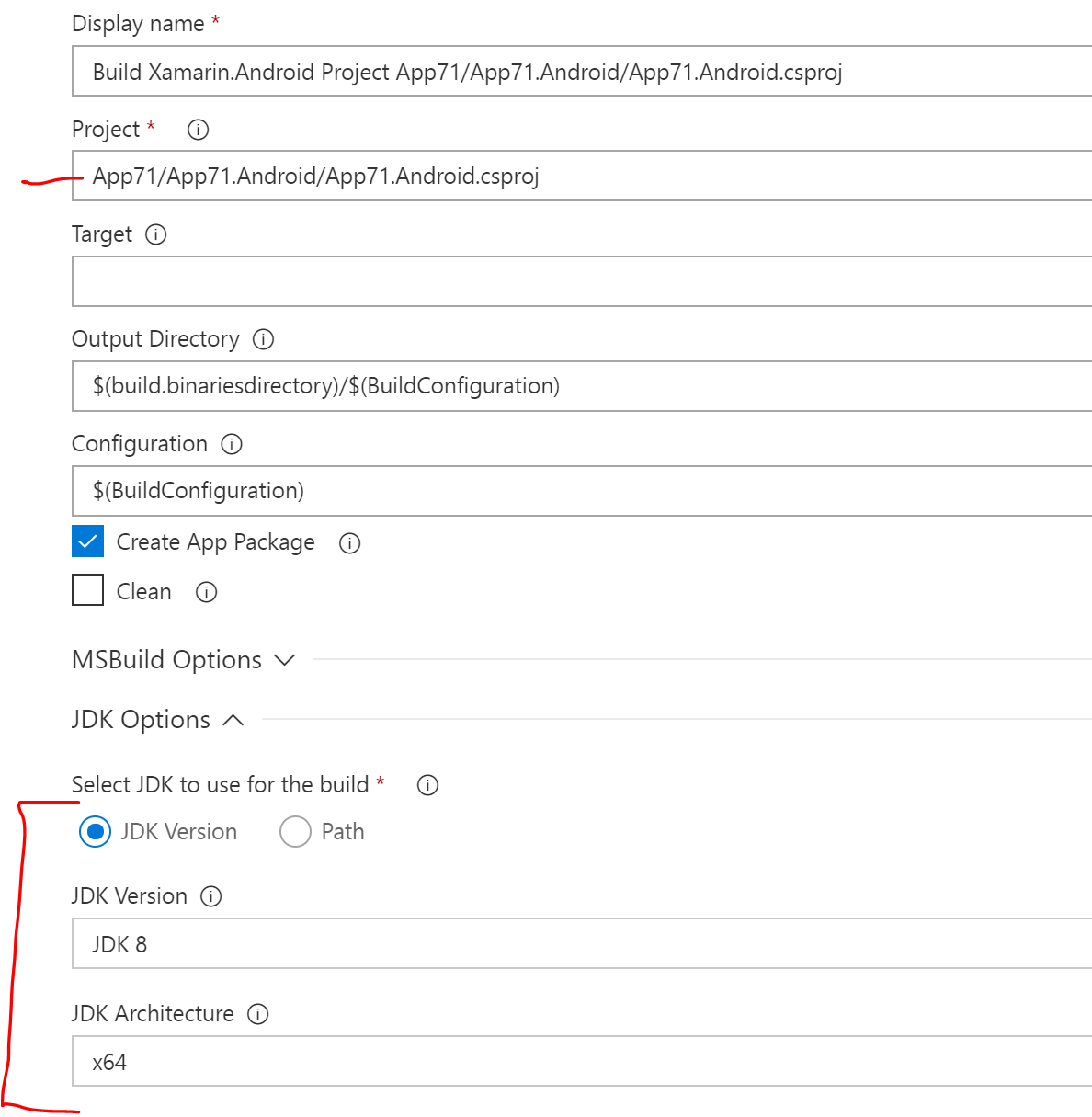

Tweak Android Build Task

We recently changed how the default Android templates are generated on disk and create a csproj that is titled: .Android.csproj Previously it was .Droid.csproj. Regardless the default csproj the Android task tries to build is a regex that looks like:

**/*Droid*.csproj

I am not a fan of using a regex regardless and always pick the specific project, but you should make sure it matches your actual projects. So for me it would be:

**/*Android*.csproj

Like I said, be sure to check your project names or pick the specific one to build, which is what I recommend.

Finally, there are multiple versions of the JDK and Java that are installed. As of today Xamarin.Android apps should be built against JDK 8 x64, which you can select under Advanced.

Queue a Build!

That is it! You can queue up a build and will have a full Android app built up. The final thing that you probably want to do is upload your keystore and ensure you Sign and do a Zip Align in that task step.

How about Hosted macOS?

I knew you would ask! The only difference is that you DO NOT need to modify the Java JDK version to use. It looks like macOS has a specific version installed and you can just leave it to default for now.

Want More VSTS?

We use VSTS for all sorts of different applciations and I recently sat down with Damian Brady on his show The DevOps Lab to talk about how we use VSTS to build the Xamarin Live Player.

Shared Tasks with TypeScript

Wait, why is James talking about TypeScript? We all know that everything JavaScript annoys him and he loves C# with all of his heart and soul. While you can run any custom command in Azure DevOps (VSTS) if you want to write a shareable task that runs on any platform (such as macOS or Linux), then it must be written in JavaScript or TypeScript that is compiled down to JavaScript.

Don't run away, it really isn't that bad I promise!!! I tried everything to write tasks in any other language including bash and PowerShell Core, but nope you really need TS/JS for now. Luckily, once you get everything setup inside of VS Code, it is a nice experience. So, let's do it!!!

Development Setup

To get started you will need a Azure DevOps (VSTS) account, VS Code, the latest version of node, the Azure DevOps (VSTS) CLI, and a scaffolded out structure for your code. The Microsoft Documentation on Adding a Task has this entire structure laid out perfectly, so go do that right now! Then come back and we will pick up from this point.

Multi-Task Structure

The documentation above sets you up to build a single task, which is okay, but a unique ability is to create a bunch of tasks into a shareable task extension. So, before we start crushing some code and npm packages, let's structure our code a bit.

Update vss-extension.json

The vss-extension.json lists out all of the tasks that you want bundled into the extension that is compiled. There are two sections, files and contributions, which need to be updated with the multiple tasks and paths that we are creating. You can see what my vss-extension.json looks like with multiple tasks on my GitHub.

Development == Start

Now it is finally time to start development yay! Before we do, we need to insure that we have the TypeScript compiler installed. It is as easy as running:

npm install -g typescript

There is great documentation over on the VS Code site.

Inside of each tak folder we need to create a tsconfig.json file that tells TypeScript what the compiler options should be.

Here is what mine looks like:

{
    "compilerOptions": {
        "module": "commonjs",
        "target": "es6",
        "noImplicitAny": false,
        "outDir": "built",
        "rootDir": ".",
        "sourceMap": true,
        "moduleResolution": "node"
    },
    "exclude": [
        "node_modules"
    ]
}

Again, there is great documentation over on the VS Code website that goes over all of this.

We will create one more file called package.json which will have information about our task and what to point to when finished and what dependencies exist:

{
  "name": "hello world",
  "version": "1.0.0",
  "description": "",
  "main": "index.js",
  "scripts": {
    "test": "echo \"Error: no test specified\" && exit 1"
  },
  "author": "",
  "license": "MIT",
  "dependencies": {
    "util": "^0.11.1",
    "azure-pipelines-task-lib": "^2.7.7"
  },
  "devDependencies": {
    "@types/node": "^8.5.1",
    "@types/q": "^1.0.6"
  }
}

Now we can create our actual TypeScript file that will be run by Azure DevOps (VSTS). Here is what the base looks like:

//Grab the Azure DevOps (VSTS) task library helpers
import tl = require('azure-pipelines-task-lib/task');
import trm = require('azure-pipelines-task-lib/toolrunner');
import { isNullOrUndefined } from 'util';

//This is the function that get run
async function run() {
    try {
        let tool: trm.ToolRunner;

        // Grab any variables the user set
        let message: string = tl.getInput("key_from_task");

        if(isNullOrUndefined(message))
        {
            message = "No message defined";
        }

        console.log(message);
    }
    catch (err) {
        tl.setResult(tl.TaskResult.Failed, err.message);
    }
}

run();

Before we try to build and run this task, we must restore our packages. Down in the terminal window of VS Code we can navigate to our Task folder and run npm commands to install the packages we need.

npm install @types/node --save-dev
npm install @types/q --save-dev
npm install azure-pipelines-task-lib --save
npm install util
echo node_modules > .gitignore

Build and Debug!

Now, it is time to compile our TypeScript down into JavaScript and actually debug it.

VS Code has some nifty commands built in for TypeScript. The command palette can be brought up with Ctrl + Shift + P or under View:

Then we can find Tasks: Run Build which will list all of the TypeScript files that can be compiled:

This can be brought up also with a keyboard shortcut of Ctrl + Shift + B.

We can select the tsconfig that we want to build and hopefully we get no errors.

This compilation will output some nice JavaScript that will be executed under the hood:

VS Code should have generated a launch.json file at the root of the solution. Here is what mine looks like:

{
    // Use IntelliSense to learn about possible attributes.
    // Hover to view descriptions of existing attributes.
    // For more information, visit: https://go.microsoft.com/fwlink/?linkid=830387
    "version": "0.2.0",
    "configurations": [
        {
            "type": "node",
            "request": "launch",
            "name": "Launch Program",
            "program": "${workspaceFolder}/tasks\\HelloWorld\\task.ts",
            "outFiles": [
                "${workspaceFolder}/**/*.js"
            ]
        }
    ]
}

We can now set a breakpoint and start to debug our task.

The final thing to do is to package up our task and ship it to the marketplace for testing. This can be done with a simple command line at the root of the project to first install tfx-cli and then bundle the package:

npm i -g tfx-cli
tfx extension create --manifest-globs vss-extension.json

Learn More

There you have it from scratch to a fully built Azure DevOps (VSTS) tasks ready to be re-used in any project. Be sure to checkout my Azure DevOps (VSTS) tasks that are fully open source on GitHub and browse through the VSTS documentation for building tasks.

So, first things first.. The backend.

My Items on ASP.NET Core

If you head over to your Visual Studio for Mac you will see a “Connected App” template. This outputs an iOS and Android app that can talk to a localhost ASP.NET Core application that runs on your macOS machine! Whoa Cool!. Now make sure you have the latest RC4 of .NET Core installed. It isn’t the one on the home page of .NET Core.. it is hidden in a GitHub readme: https://github.com/dotnet/core/blob/master/release-notes/rc4-download.md

If you just want the source code for the app to play around with you can grab it from my GitHub. Now, once we have the source code we can run the site and navigate to /api/item to retrieve the default lists of items:

Linux App Service

Looking good! Next up, Let’s create our Azure App Service that will run on Linux (in preview today). Head to your Azure Portal and hit New -> Web + Mobile + Web App on Linux (preview):

This will go through the standard setup process and bring you in to your standard app service settings. The first thing that we need to do is adjust our Docker Container. We want to select .NET Core v1.0 runtime stack and REALLY REALLY IMPORTANT to set the startup file. This file is the main DLL of our application. We will be uploading our files to the wwwroot.

Build

I decided to throw all of my code in Visual Studio Team Services (VSTS) and do some good DevOps work to make Donovan Brown proud. You could also just put your code on GitHub if you would like and VSTS will also build it. To actually build it, is crazy easy actually, just select ASP.NET Core (PREVIEW).

This literally does everything for you! I have disabled tests and I have my dotnet commands pointing to a subfolder, but that is about it:

Release

Now, let’s publish this thing. The build will give us a zip file to use and normally you would use Web Deploy and done… but that doesn’t work on Linux just yet… and Kudu… not yet.. and all the continuous git stuff… not yet… so let’s FTP the files! In the azure portal you can grab your FTPs user name and password that you will need.

There are 4 steps needed in the release definition:

1. Stop App Service

2. Extract Zip File

3. Upload Files

4. Start App Service

1, 2, and 4 are easy with minimal config, but #3 you must specify the remote directory of /site/wwwroot

Whoa!! we did it!!

Fun fact… Preview inside of VSTS and the Azure portal in this blog post alone are cased 3 different ways :)

If you are looking to get your Xamarin apps setup in VSTS then checkout my blogs for Android and iOS that offer a full walk through. This blog will work with any iOS or Android app regardless of how you build it :)

ALM Build & Release Tools

There unfortunately is no out of the box support from what I have seen to actually bump versions, but we can leverage a marketplace extension from Colin called ALM Build & Release, specifically the “Version Assemblies” step.

Android Version Bumping

In my Android manifest my name and code look like this:

android:versionCode="1" android:versionName="1.0.0"

These are important, as we will use a regex to update them.

We will want to add the “Version Assemblies” task TWICE, once for the version name and once for the version code.

Once added, we will bump the name.

First insert the following (with examples):

• Source Path: src/MobileApps/MyDriving/MyDriving.Android/Properties
• File Pattern: AndroidManifest.xml
• Build Regex Pattern: (?:\d+.\d+.\d+.)(\d+)

Under Advanced:

• Build Regex Group Index: 0

• Regex Replace Pattern: versionName=“\d+.\d+.\d+

• Prefix for Replacements: versionName=”

What this will do is update the version name to the Build number format found under “General”, which mine is set to 1.0.0$(rev:.r)

Now for the next one, which is the version code:

• Source Path: src/MobileApps/MyDriving/MyDriving.Android/Properties
• File Pattern: AndroidManifest.xml
• Build Regex Pattern: (?:\d+.\d+.\d+.)(\d+)

Under Advanced:

• Build Regex Group Index: 1

• Regex Replace Pattern: versionCode=“\d+

• Prefix for Replacements: versionCode\

And just like that you are good to go. This will simply update it with the current version revision :)

iOS Version Bumping

This one is a bit trickier and requires some specific things set in the Info.plist. We will need to ensure that the following are set to these very very specific version numbers in the actual Info.plist:

• CFBundleShortVersionString: 1.0.1

• CFBundleVersion: 1.1.1

Don’t ask me why, just trust me!

Under General I have set my build number format to 1.2.$(rev:.r):

I think we just happened to be on 1.2 which is why it is like this, your mileage may vary here. Now we will add the Version Assemblies task TWICE, just like we did for Android.

Let’s first bump the CFBundleShortVersionString:

• Source Path: src/MobileApps/MyDriving/MyDriving.iOS
• File Pattern: /Info.plist
• Build Regex Pattern: (?:\d+.\d+.)(\d+)

Under Advanced:

• Build Regex Group Index: 1

• Regex Replace Pattern: 1.0.\d+

• Prefix for Replacements: 1.2.

That will bump it to 1.2.BuildNumber.

Let’s then bump the CFBundleVersion:

• Source Path: src/MobileApps/MyDriving/MyDriving.iOS
• File Pattern: /Info.plist
• Build Regex Pattern: (?:\d+.\d+.)(\d+)

Under Advanced:

• Build Regex Group Index: 1

• Regex Replace Pattern: 1.1.\d+

• Prefix for Replacements: 1.2.

As you can see I have to execute these in a specific order to not bump versions differently. It is tricky, but so are regex. And there you have it, bumping versions for both iOS and Android inside of Visual Studio Team Services.
